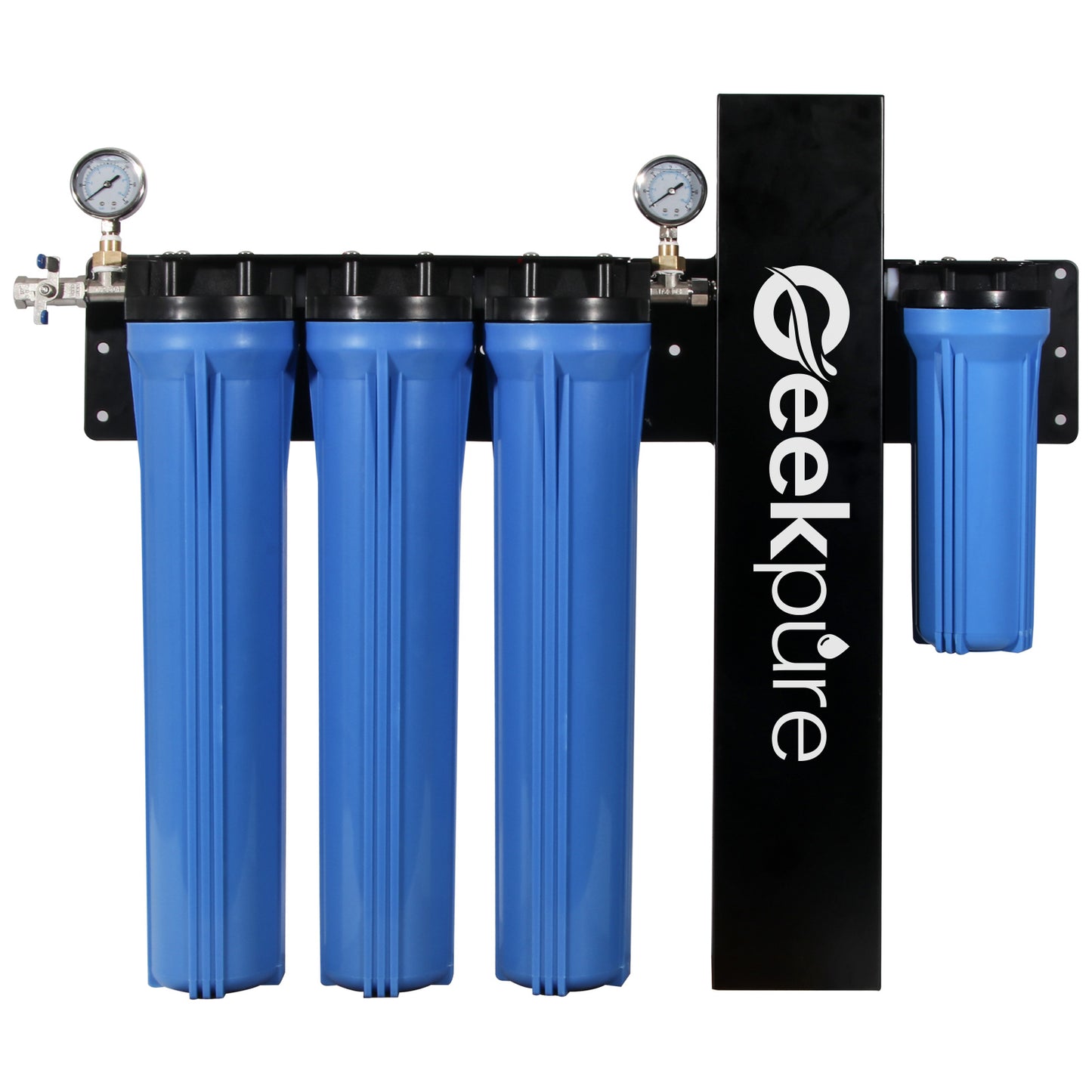

Geekpure 5 Stage Whole House Water Filter System with 2.5 x 20 5 Micron PP Sediment + Carbon Filters and 6 GPM UV

About this item

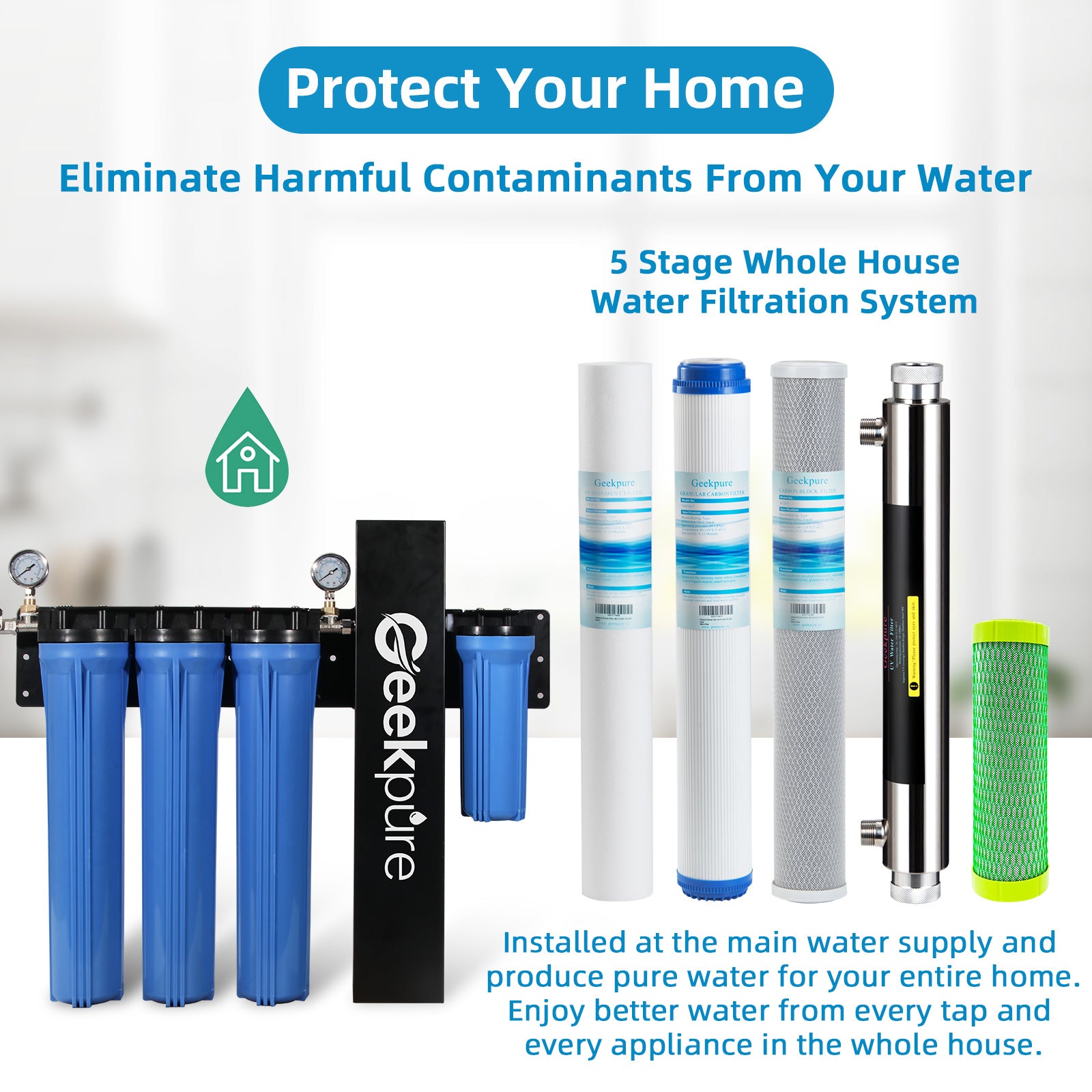

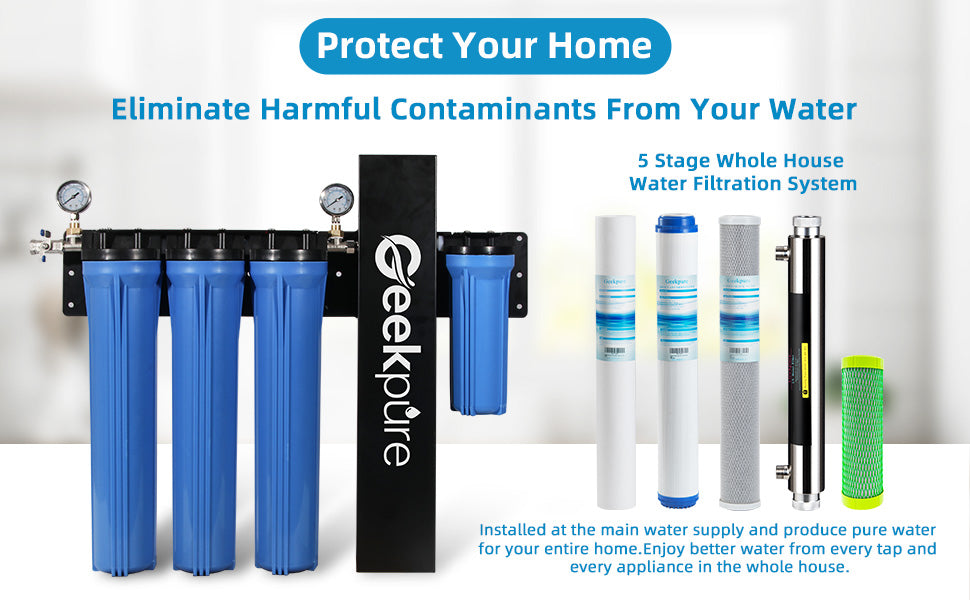

• 5 Stage Whole House Water Filtration System with PP Sediment, Granular Carbon Filter, Carbon Block Filter, 6 GPM UV and Nano Antiscale Carbon Filter
• PURE-It is Installed at the main water supply and produce pure water for your entire home. Enjoy better water from every tap and every appliance in the whole house
• FUNCTION-5 Micron PP Sediment is used to reduce silt, sand, rust, dirt, and undissolved particles, The PP filter display different color and tracks the life time as you use,It is time to replace a new one when it is dark yellow or brown.Carbon block filter is used to reduce chlorine, taste & odors, Nano Antiscale Carbon Filter-reduce chlorine,taste ,odors and scale
• Inlet/outlet :3/4" NPT thread, Large capacity housing for high flow applications. ASIN for Replacement filters and parts: B09W9KSTQ8 | B0C77S6MYD | B0C77QVMK1 | B0C77TBQG6 | B07GR1H5CZ | B07KHW2DK1 | B07BGRLFG4 | B085XRPLCS |B07LCKLP5K

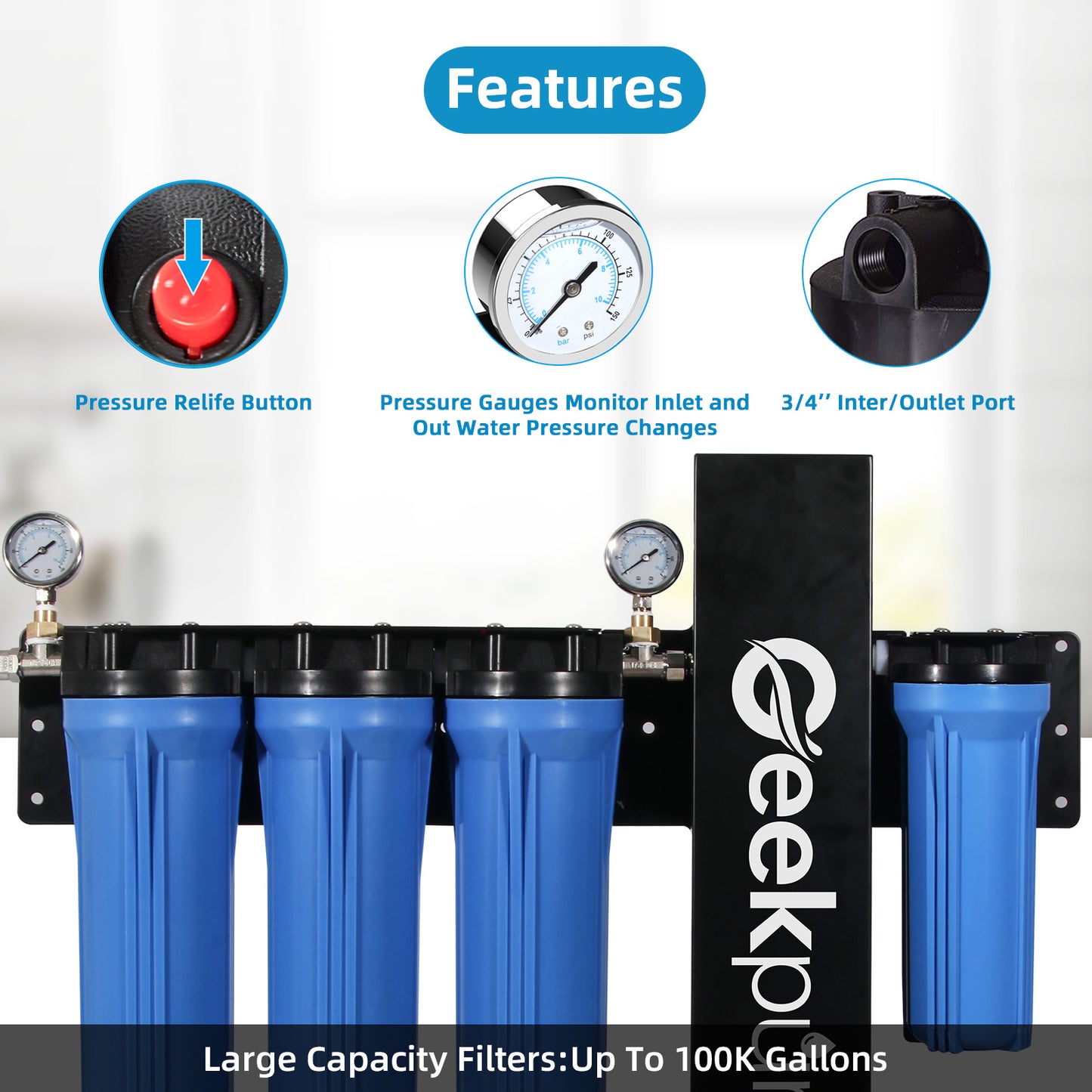

• LIFE TIME:6-12 months or 100K gallons water.UV Filter last 1 year.Flow rate : 5-15 GPM (Depend on Feed Water Pressure) 2 x pressure gauges are installed at the inlet and outlet to check the working status of the filter element
• Item model number ‏ : ‎ 5 STAGE PWF

Specification:

Maximum Pressure: 90 psi (6.2 bar) ,

Suggested Work Pressure:50-60 psi,

Work Temperature:40-110°F/5-45°C ,

Shelf Life: 5 Years.

Flow Rate : 5-15 GPM (Depend on Feed Water Pressure)

Note:

1. This filter housing has a maximum operating pressure rating of 90 psi, if you suspect that your water pressure will at any time exceed 80 psi, a pressure regulator MUST BE INSTALLED before the filter housing. this action will guard against the water pressure exceeding the maximum pressure rating.it is recommended that the pressure regulator be set at 60 psi or less.

2. In inlet/outlet thread part,please wrap ENOUGH seal tape. Teflon tape, then a layer of joint compound or other glue could be used for metal and stainless steel material, then Teflon tape again. almost all leaking could be fixed.

3. Please remove canisters from the caps, clean the O ring surfaces and re lubricate. the rubber o-ring provides the water tight seal between the cap and the sump. it is important that the o-ring be properly seated in the groove of a water leak could occur.

4. By using the supplied wrench and making very tight. you may search "whole house water filter " on YouTube, there is some video about similar system installation, it is very helpful if it is the first time to install it.

5. Protect filter housing from freezing.

6. Please Run water for about 10-15 minutes when you replace filters everytime, it is normal if black carbon fines to appear in the water when flush filters, and the water produced should be emptied and not used.

More valuable information:

1. What is dimension of the housing and filters ?

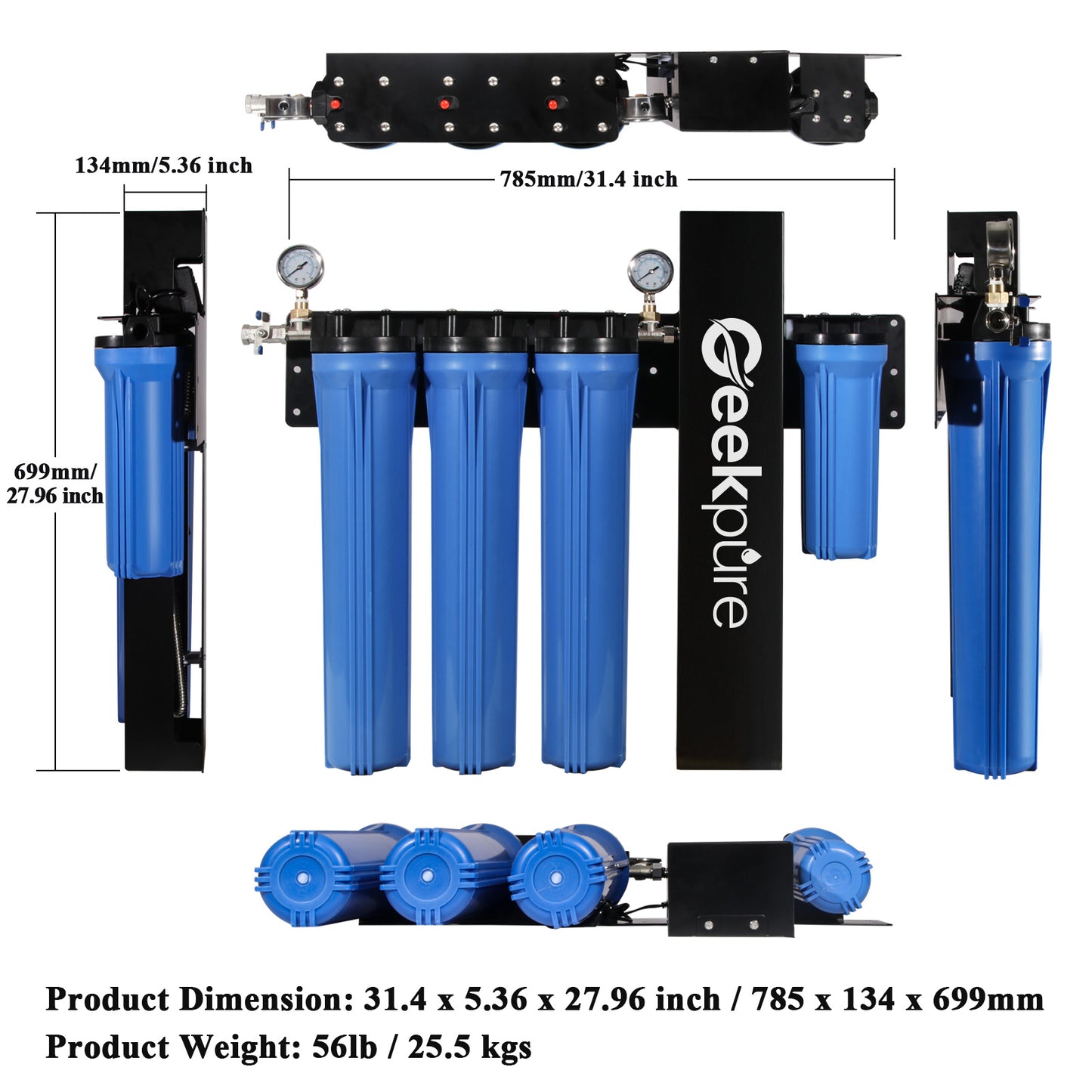

ANSWER: It is standard sized 2.5" OD x 10" and 20 " height filters and housings .

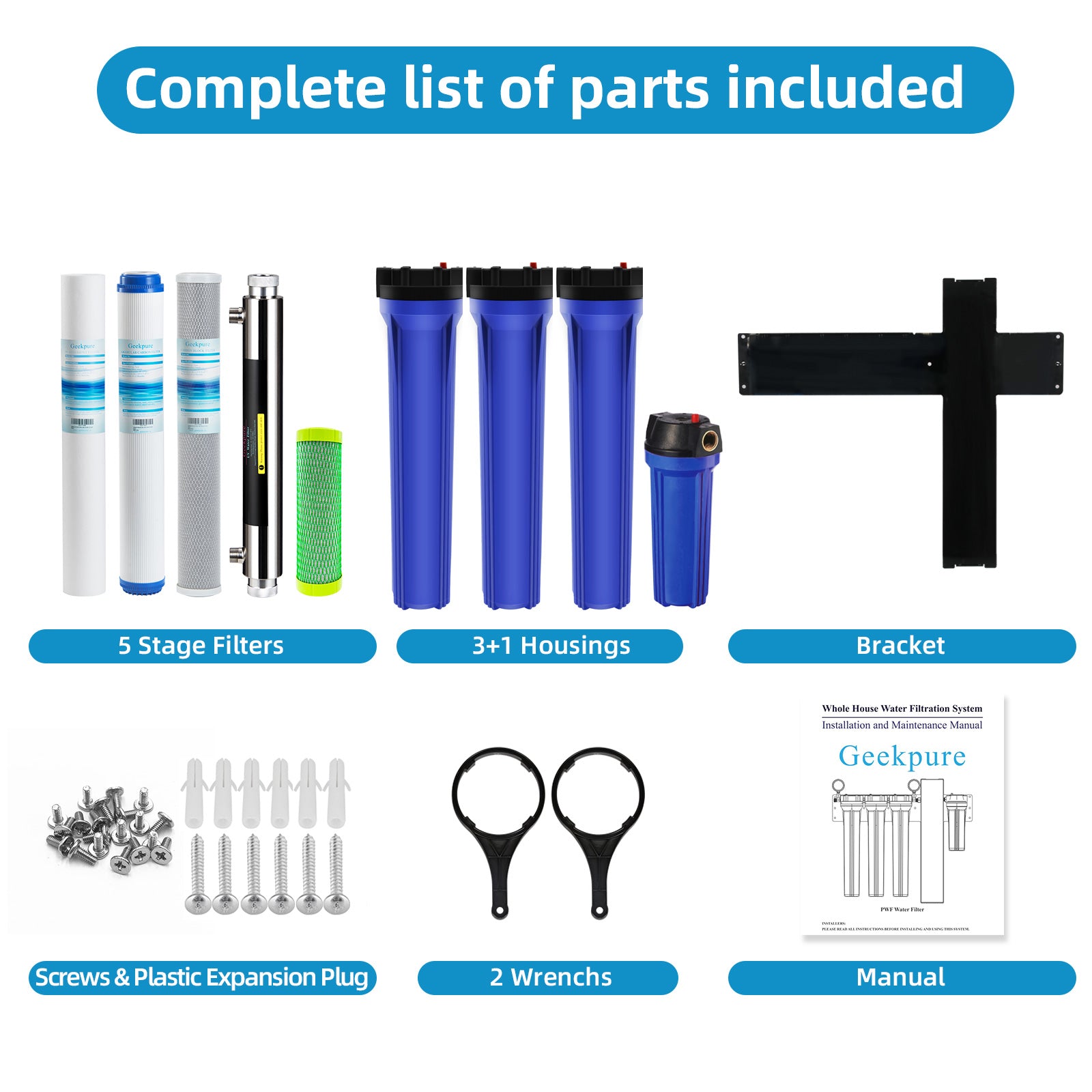

2. What is in the box?

ANSWER: 3 x 20 inch slim sized blue housing with pressure release and 2.5 x 20 inch filter cartridges , 1 set 6 gpm UV filter, 1 x10 inch slim sized housing and carbon filter.2 x plastic wrench ,1 x metal frame.1 bags screws.

3.What is filters options and function?

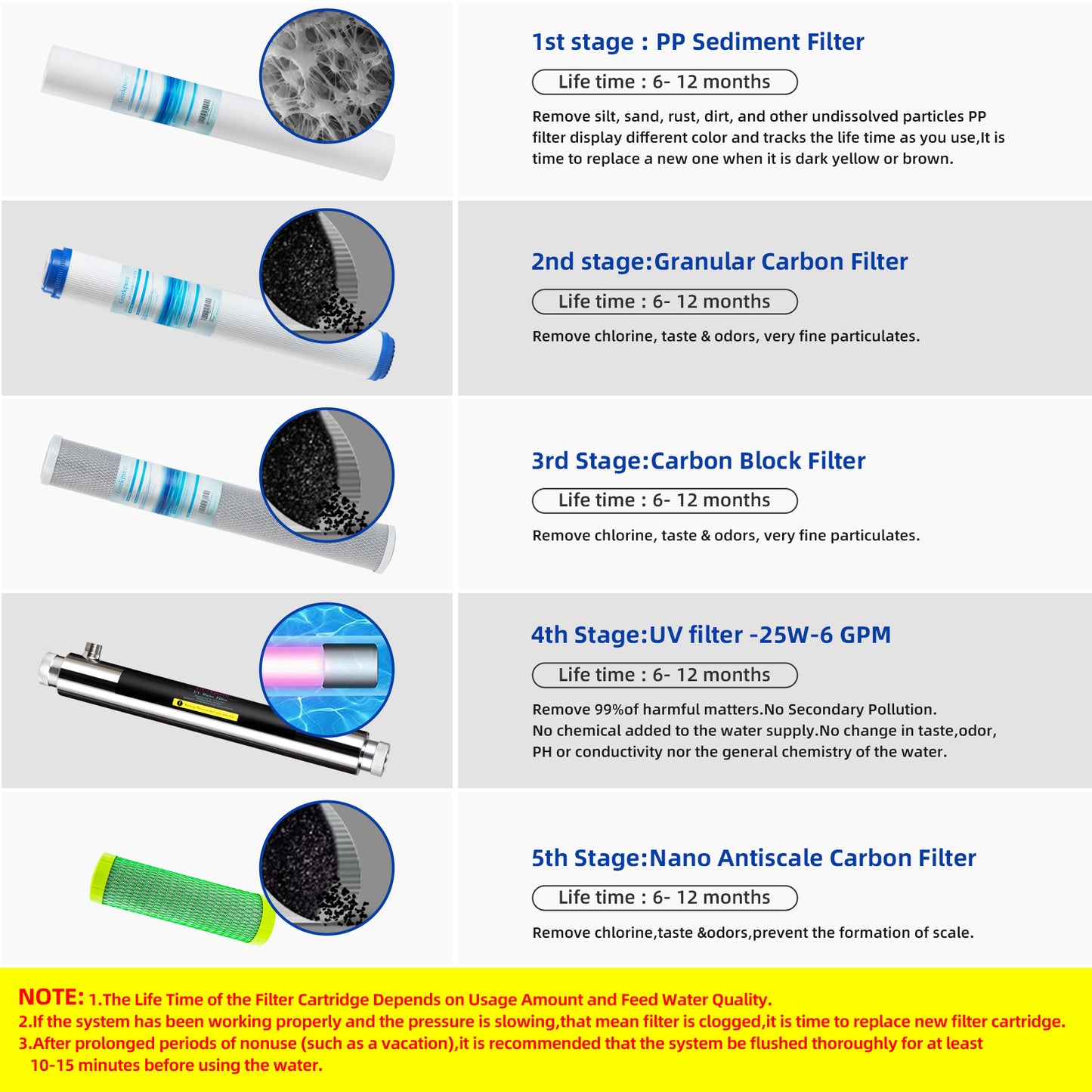

ANSWER: Filter cartridges function:

1.PP Sediment Filter -Remove sand,dirt,sediment.

2.Granular Carbon Filter -Remove chlorine,taste &odors,very fine particulates.

3.Block Carbon Filter-Further remove chlorine,taste &odors,very fine particulates.

4.UV Water Filter 6 GPM -Remove 99%of harmful matters.No Secondary Pollution.No chemical added to the water supply.No change in taste,odor, PH or conductivity nor the general chemistry of the water.

5.Nano Antiscale Carbon Filter-Remove chlorine,taste &odors,prevent the formation of scale.

LIFE TIME:6-12 months or 100K gallons water. UV Filter last 1 year.

ASIN for Replacement filters and parts: B09W9KSTQ8 | B0C77S6MYD | B0C77QVMK1 | B0C77TBQG6 | B07GR1H5CZ | B07KHW2DK1 | B07BGRLFG4 | B085XRPLCS |B07LCKLP5K

PS.The Life Time of the Filter Cartridge Depends on Usage Amount and Feed Water Quality.
