About this item

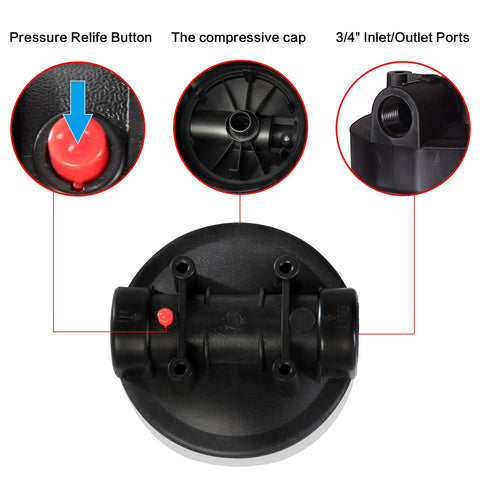

• • 10 inch whole house water filter housing,3/4"NPT plastic inlet/outlet,with pressure release button for high flow,with plastic wrench and bracket, filter cartridges are sold separately.Pack of 4 sets housings
  • Fits all standard sized 4-1/2 inch diameter industry 10 inch whole house filters

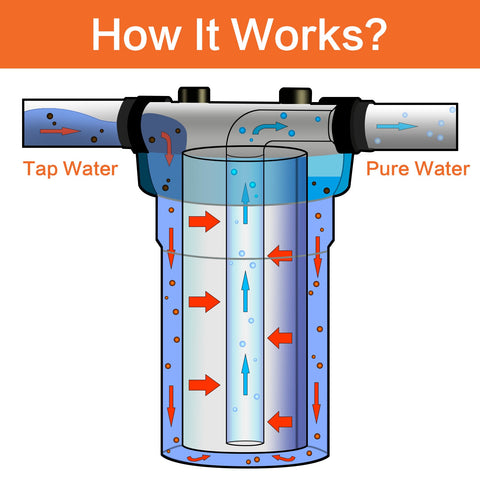

  • It is Installed at the main water supply and produce pure water for your entire home. Enjoy better water from every tap and every appliance in the whole house
  • Flow rate : 5-15 GPM (Depend on Feed Water Pressure).Matched filter cartridges options, please refer ASIN:B07JNC5GM4 | B07797MT8K | B077971QT7 | B07JPZ183L | B07TMCPJVD | B07TJ6MXKM via Amazon
  • 1 Year limited warranty,30 Days Money Back Guarantee ISO9001:2015 certificated Manufacturer ,also Member of Water Quality Association (WQA)

Specification:

Maximum Pressure: 90 psi (6.2 bar)

Suggested Work Pressure:50-60

Temperature:40-110°F/5-45°C

Shelf life: 5 Years.

Part Number:BB-10B 3/4

Item model number BB-10B 3/4

Specification:

Maximum Pressure: 90 psi (6.2 bar) ,Suggested Work Pressure:50-60 psi,Temperature:40-110°F/5-45°C , Shelf life: 5 Years.

Note:

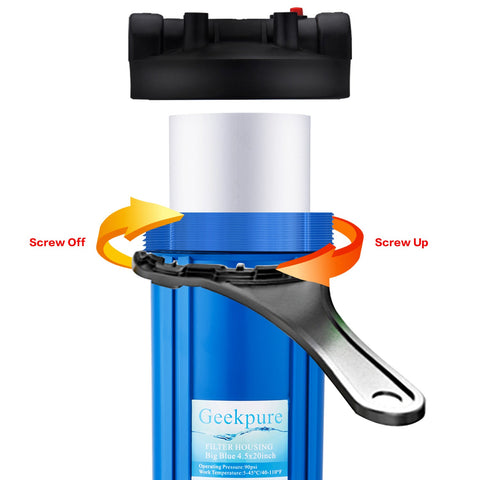

1. Please lubricate the o-ring with silicon grease and use wrench provided to prevent leakage. you may search "whole house water filter " on YouTube, there is some video about this housing, it is very helpful if it is the first time to install it.

2. Protect filter housing from freezing.

3. This filter housing has a maximum operating pressure rating of 90 psi, if you suspect that your water pressure will at any time exceed 80 psi, a pressure regulator MUST BE INSTALLED before the filter housing. this action will guard against the water pressure exceeding the maximum pressure rating.it is recommended that the pressure regulator be set at 60 psi or less.

4. The rubber o-ring provides the water tight seal between the cap and the sump. it is important that the o-ring be properly SEATED IN THE GROOVE of a water leak could occur.

More valuable information:

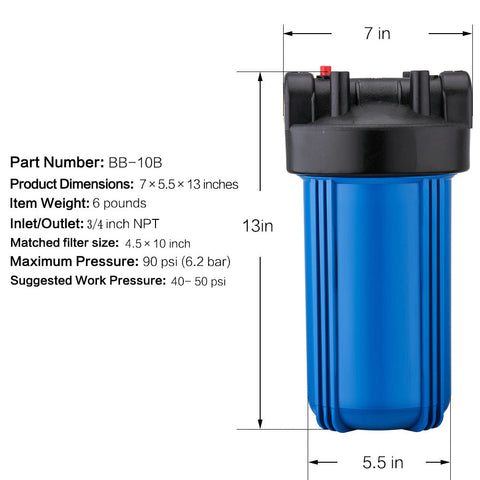

1. What is dimension of the housing?

ANSWER: It is standard sized housing for 4.5"OD x 10" height filters .

2. What is in the box?

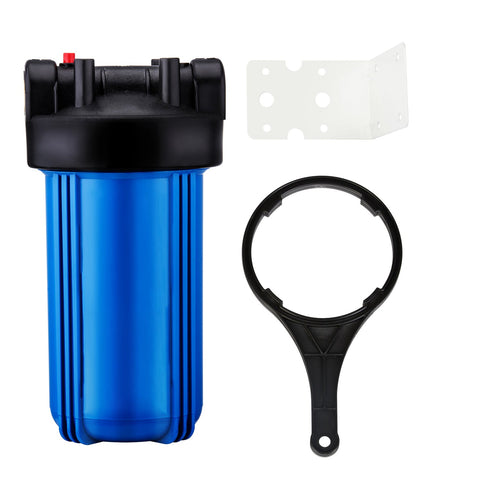

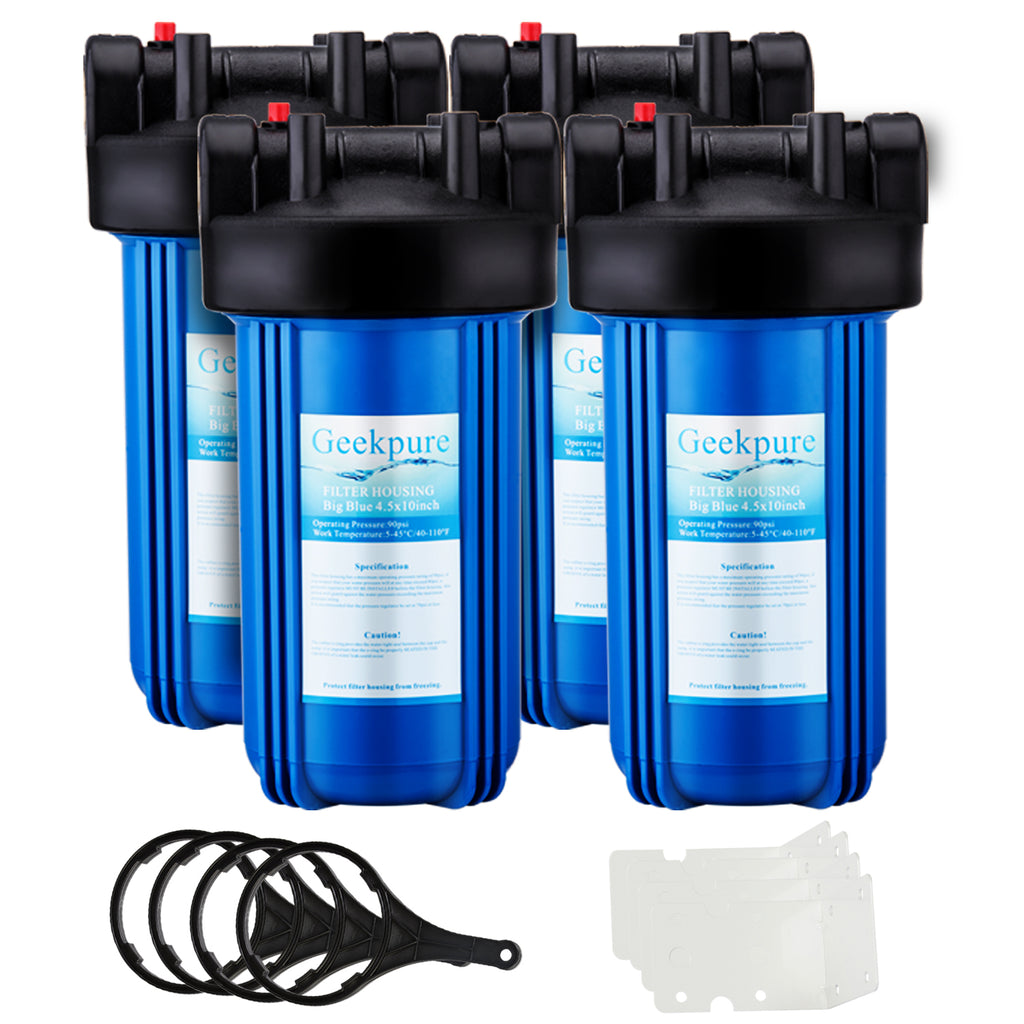

ANSWER: 4 x 10 inch blue housing with pressure release , 4 x plastic wrench ,4 x metal bracket and 4 bags screw.

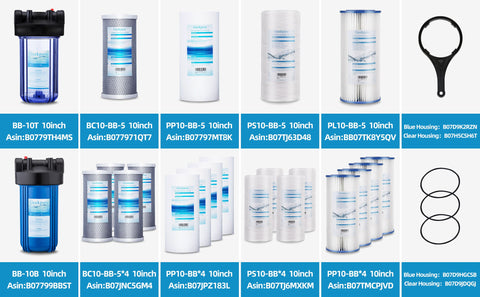

3.What is filters options?

ANSWER:1).PP spun filter, Remove sand, dirt, sediment. life time:6 months.

2).Carbon block filter, Further remove chlorine, taste & odors, very fine particulates. life time:6 months. PS.The Life Time of the Filter Cartridge Depends on Usage Amount and Feed Water Quality.
