Geekpure Water Group

20 inch Whole House Water Filter Housing-1"NPT Brass Port-Fit 4.5"x 20" Filter (4)

20 inch Whole House Water Filter Housing-1"NPT Brass Port-Fit 4.5"x 20" Filter (4)

Regular price $199.99 USD
Regular price $299.99 USD Sale price $199.99 USD
Sale Sold out
Shipping calculated at checkout.

About this item

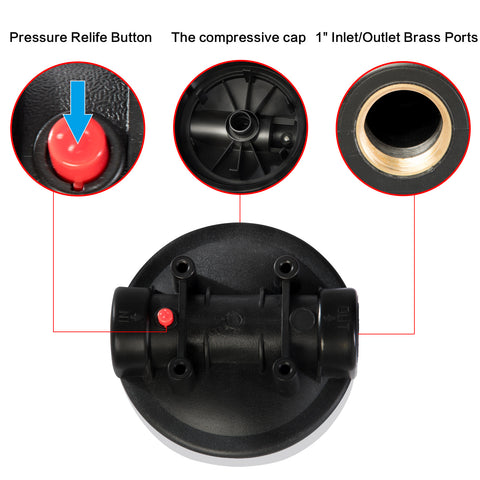

  • Pack of 4 Sets 20 inch Jumbo blue housing,1"NPT inlet/outlet,with pressure release button for high flow,plastic wrench and metal bracket.Housing only, filter cartridges are sold separately
  • STANDARD-Fits all standard sized 4-1/2 inch diameter industry 20 inch whole house cartridges
  • Large capacity housing for high flow applications,Flow rate : 5-15 GPM (Depend on Feed Water Pressure)

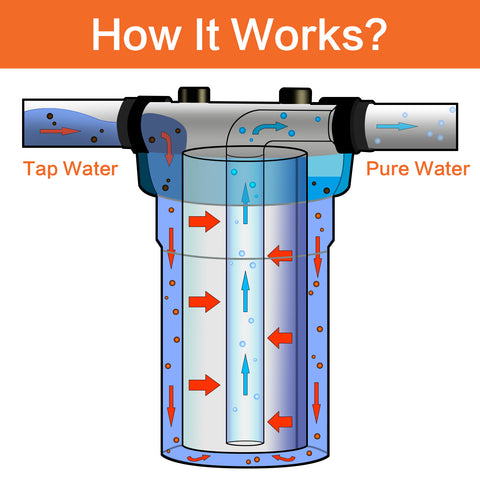

  • PURE-It is Installed at the main water supply and produce pure water for your entire home. Enjoy better water from every tap and every appliance in the whole house
  • ISO9001:2008 certificated Manufacturer ,also Member of Water Quality Association (WQA),1 year limited warranty,30 Days Money Back Guarantee.Matched filter cartridges options, please refer and search product ASIN: B07798RFVH | B07JM78FXT | B07JNL4QFS | B07TNJ86KZ | B07TPLK752 | B07JMMGND9 | B081DH69JX via Amazon


Maximum Pressure: 90 psi (6.2 bar) ,

Suggested Work Pressure:50-60 psi,

Temperature:40-110°F/5-45°C ,

Shelf life: 5 Years.


1. Please lubricate the o-ring with silicon grease and use wrench provided to prevent leakage. you may search " whole house water filter " on YouTube, there is some installation video about this housing, it is very helpful if it is the first time to install it.

2. Protect filter housing from freezing.

3. This filter housing has a maximum operating pressure rating of 90 psi, if you suspect that your water pressure will at any time exceed 80 psi, a pressure regulator MUST BE INSTALLED before the filter housing. this action will guard against the water pressure exceeding the maximum pressure is recommended that the pressure regulator be set at 60 psi or less.

4. The rubber o-ring provides the water tight seal between the cap and the sump. it is important that the o-ring be properly SEATED IN THE GROOVE of a water leak could occur.

More valuable information:

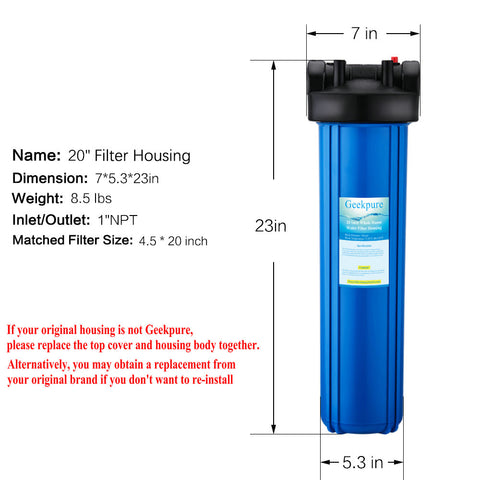

1. What is dimension of the housing?

ANSWER: It is standard sized housing for 4.5"OD x 20" height filters .

2. What is in the box?

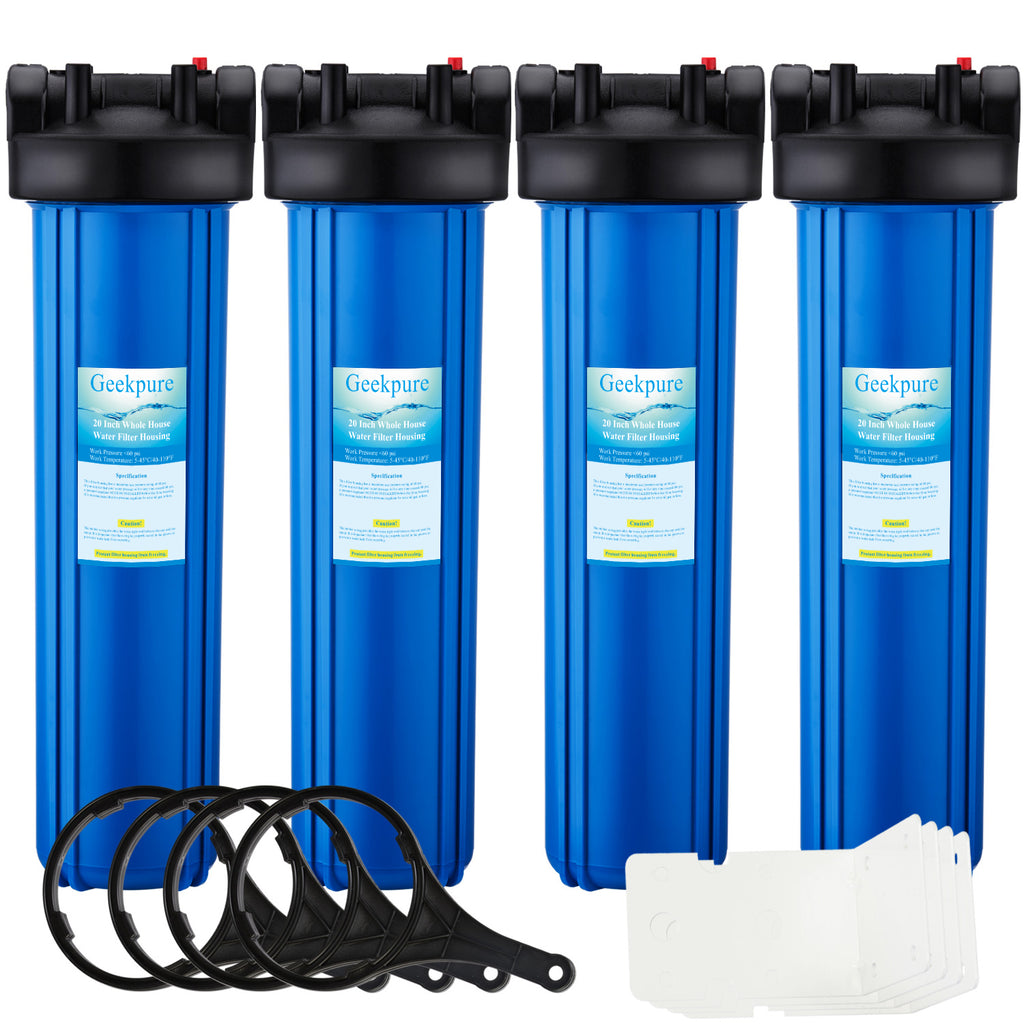

ANSWER: 4 x 20 inch housings with pressure release,4 x plastic wrench ,4 x metal bracket and 4 bag screws.

3.What is filters options?

ANSWER:1).PP spun filter, Remove sand, dirt, sediment. life time:6 months.

2).Carbon block filter, Further remove chlorine, taste & odors, very fine particulates. life time:6 months. PS.The Life Time of the Filter Cartridge Depends on Usage Amount and Feed Water Quality. We list more options for matched filter cartridges and other size housing:

View full details

Customer Reviews

Based on 84 reviews
Rakesh C
Protect my tankless water heater

Best filter ever

Works well.

Good product. Works well.

Big blue water filter

great for whole house filter

Great price. Solid product.

Great price. Solid product.

Well priced option

Purchased the used like new version and if it is used it didnt show it. Perfect condition. This will be an upgrade for my old 20 x 2.5 housing. Now i can use my old filter for my drinking water line and have longer lasting filters and good flow to the rest of the house.
