10-Inch Big Clear Whole House Water Filter Housing 3/4“ Port 4.5"x10"
10-Inch Big Clear Whole House Water Filter Housing 3/4“ Port 4.5"x10"
Couldn't load pickup availability

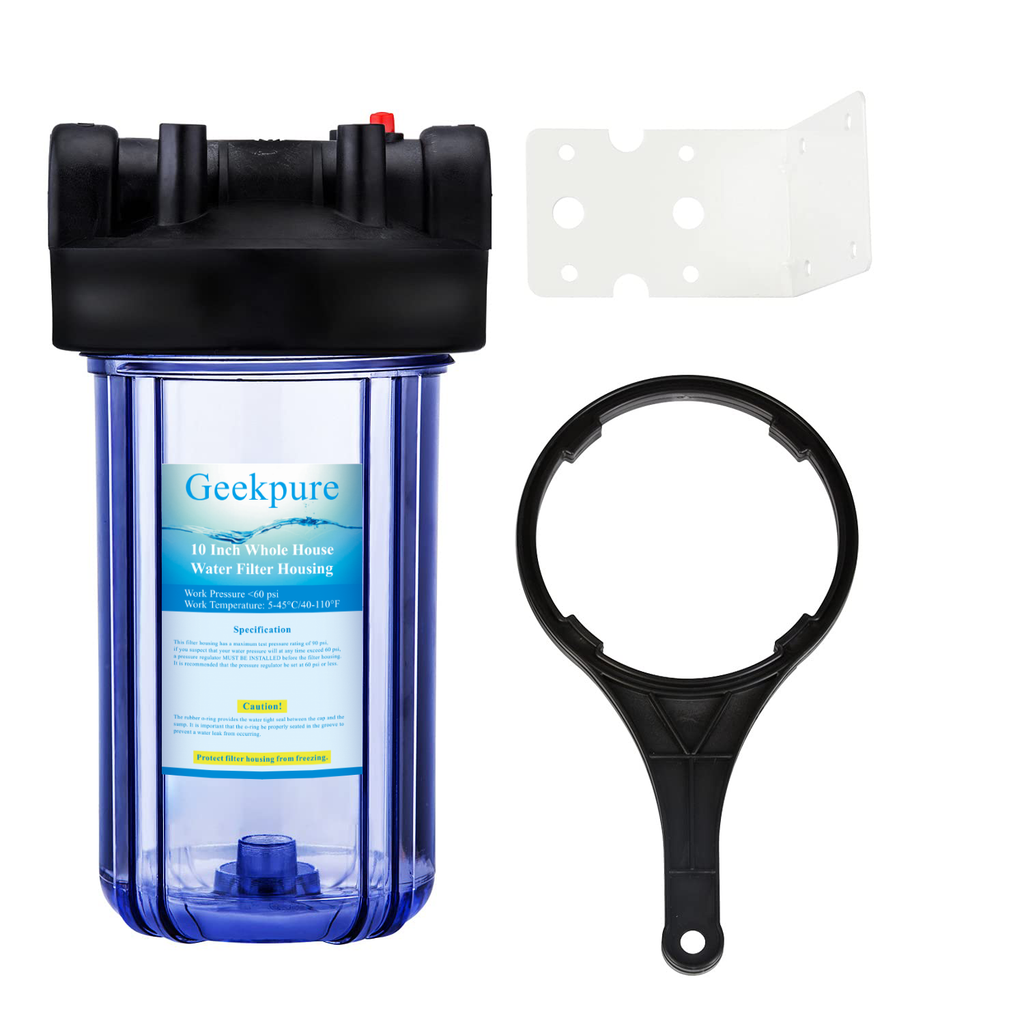

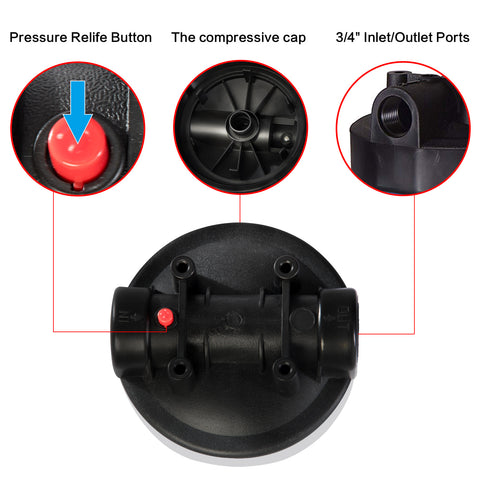

- COMPLETE-Complete one set 10 inch big clear housing,3/4"NPT plastic inlet/outlet,with pressure release button for high flow,plastic wrench and metal bracket.Housing only, filter cartridges are sold separately
- STANDARD-Fits all standard sized 4-1/2 inch diameter industry 10 inch whole house cartridges.The clear housing allows you to see when you need to change filters and everything else works as it should
- HIGH QUALITY-Fits NSF standard,Large capacity housing for high flow applications
- WARRANTY-One year limited warranty,30 Days Money Back Guarantee
- ISO9001:2008 certificated Manufacturer ,also Member of Water Quality Association (WQA).NOTE:THE MATERIAL OF CLEAR HOUSING IS NOT STRONG AS BLUE COLOR HOUSING,SUGGESTED FEED WATER WORK PRESSURE IS UNDER 50 PSI
Product description
Specification:
Maximum Pressure: 90 psi (6.2 bar) ,,It is test pressure, SUGGESTED WORK PRESSURE IS UNDER 50 PSI
Temperature:40-110°F/5-45°C ,
Shelf life: 5 Years
More valuable information:

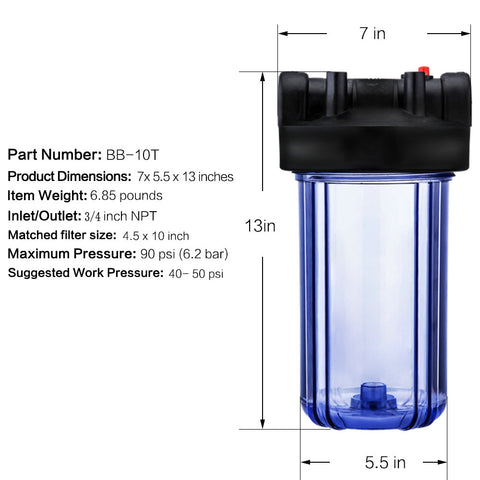

*What is dimension of the big clear housing?
It is 7"X7"X14" .
*What is in the box?
1x10inch big CLEAR housing with pressure release and 1inch NPT , 1pc plastic wrench ,1pc metal bracket.
*What is filters options?
1.PP spun filter, Remove sand, dirt, sediment. life time:6 months.ASIN:B07797MT8K / B07JPZ183L.
2.Carbon block filter, Further remove chlorine, taste & odors, very fine particulates. life time:6 months. ASIN:B077971QT7 / B07JNC5GM4.
3.PP pleated filter, the material is same as PP sediment,Remove sand, dirt, sediment. life time:6 months. ASIN:B07TMCPJVD
4.PP string filters, the material is same as PP sediment,Remove sand, dirt, sediment. life time:6 months. ASIN:B07TJ6MXKM
PS.The Life Time of the Filter Cartridge Depends on Usage Amount and Feed Water Quality.
Note:
1. Please lubricate the o-ring with silicon grease and use wrench provided to prevent leakage. Protect filter housing from freezing.
2. This filter housing has a maximum operating pressure rating of 90 psi, if you suspect that your water pressure will at any time exceed 80 psi, a pressure regulator MUST BE INSTALLED before the filter housing. this action will guard against the water pressure exceeding the maximum pressure rating.it is recommended that the pressure regulator be set at 50 psi or less.
3.The rubber o-ring provides the water tight seal between the cap and the sump. it is important that the o-ring be properly SEATED IN THE GROOVE of a water leak could occur.
