10“ Whole House Water Filter Housing,4 Working Modes

  • Sale
  • $99.99
  • Regular price $159.99


About this item

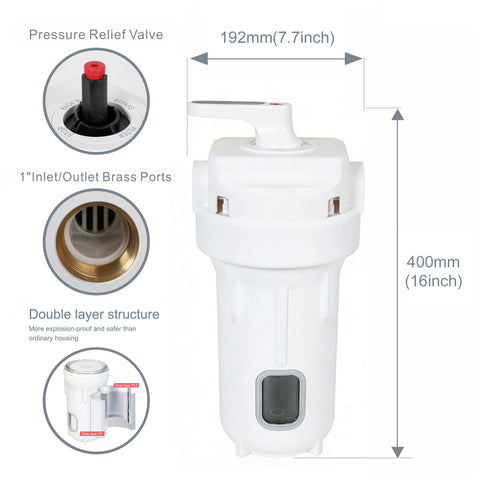

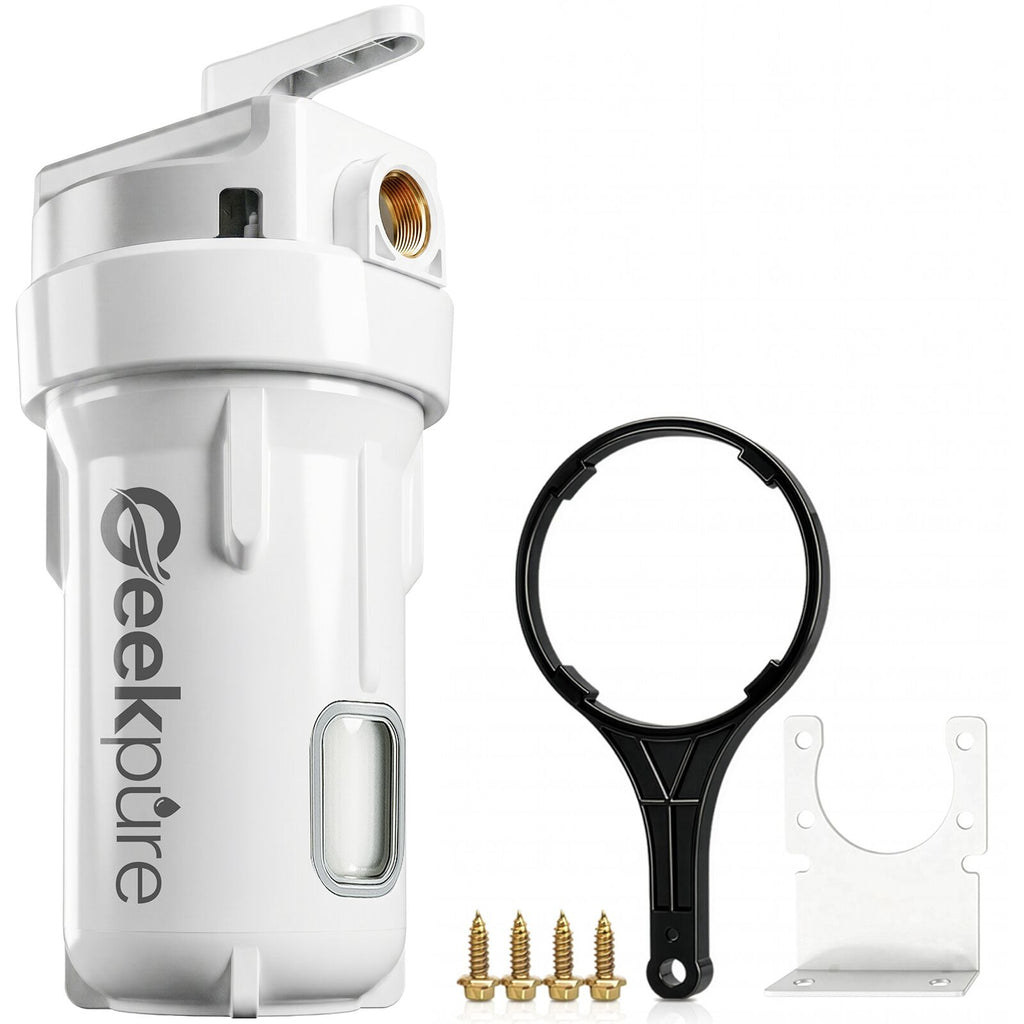

    • 10 Inch Whole house water filter housing,1"NPT brass inlet/outlet,with pressure release button for high flow,with plastic wrench and bracket,4 Working Positions options

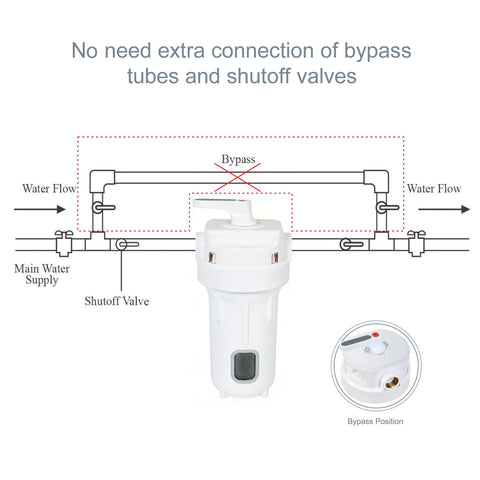

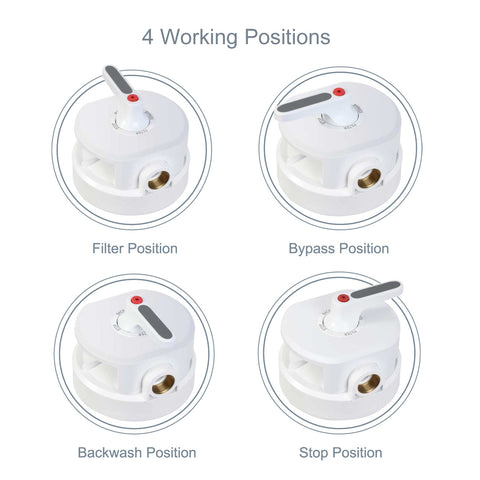

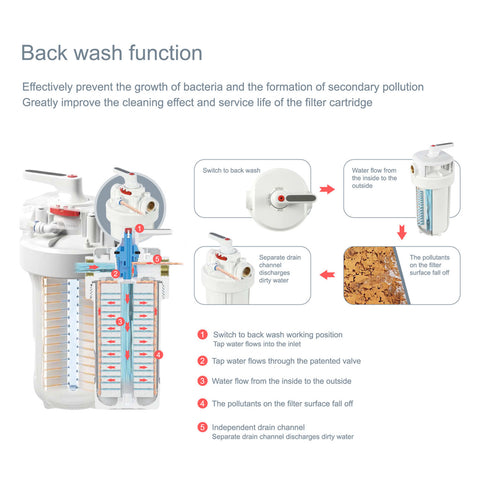

    • 4 Working Positions- Filter, Bypass, Backwash, Stop. "Bypass": When performing maintenance and replacing the filter cartridge, it will not affect the water supply for the entire house. The "backwashing "function can extend the service life and performance of the filter cartridge. The "stop" function is specifically designed for vacation mode, allowing you to have no worries about water leakage when you are away from home
    • Fits standard sized 4-1/2 inch diameter industry 10 inch whole house filter cartridges,Filter housing only ,Filter cartridges are sold separately,Matched filter cartridges options, please refer ASIN:B07JNC5GM4 | B07JPKX289 | B077971QT7 | B07JPZ183L | B07TMCPJVD | B07TJ6MXKM via Amazon

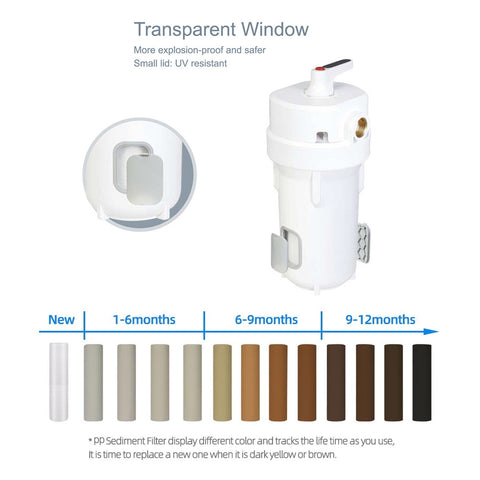

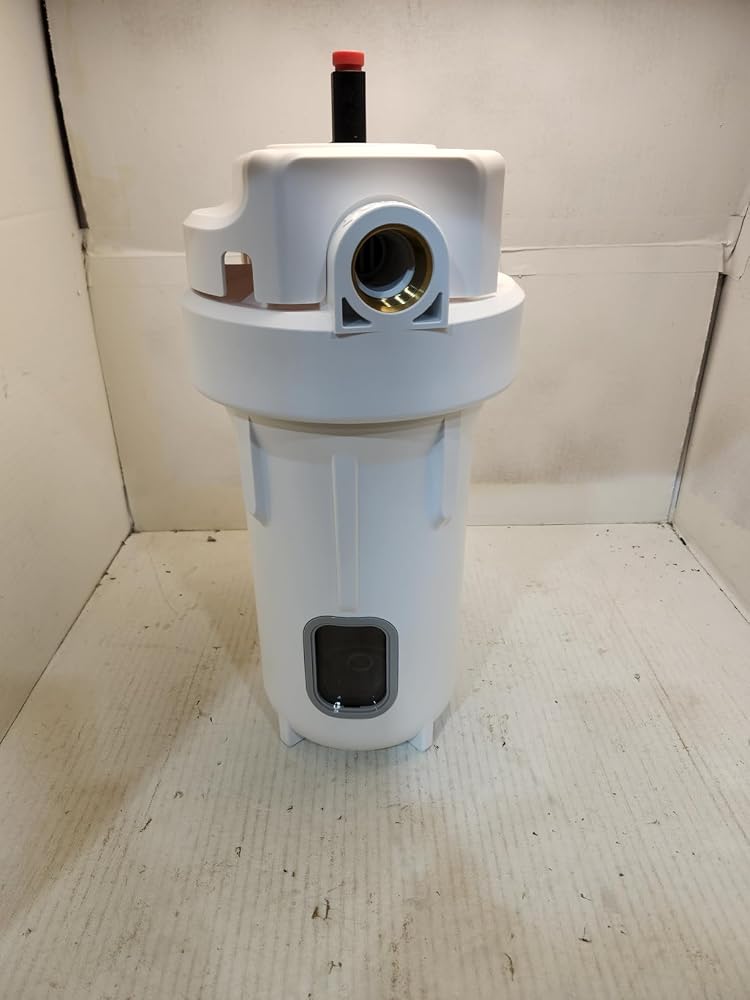

    • CLEAR BOTTOM VIEWING WINDOW – Easily monitor filter condition at a glance to determine the exact replacement time, eliminating blind and unnecessary filter changes

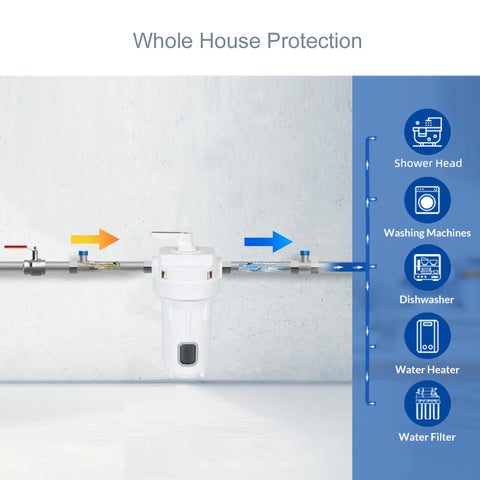

    • It is Installed at the main water supply and produce pure water for your entire home. Use for whole house, inline, or under sink,Extends life of washing machines, water heaters and other household appliances,Enjoy better water from every tap and every appliance in the whole house
    • Large capacity housing for high flow applications. Flow rate : 5-15 GPM (Depend on Feed Water Pressure),Feed water work temperature:40-110°F/5-45°C ,Work Pressure : 10-60 psi,Life time :6-12 months (Depends on Usage Amount and Feed Water Quality)
    • Please note that this is NOT a universal housing.Different brands, the threads of the lid and the sump part are different. it don't fit with other brands lid,If you prefer to reuse the black top lid from your existing system (and only replace the old sump), you must to use your original housing brand's instead

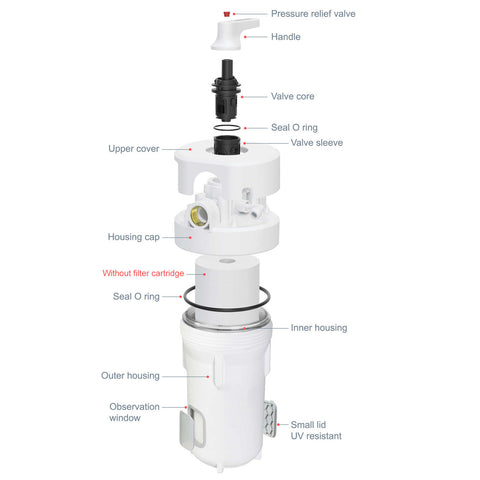

    • Built-in pressure release valve allows for safe and easy filter replacement by relieving internal pressure before opening the housing,We usually don't tighten the exhaust valve area particularly. Please tighten it by one turn when you install the cover
    • Professional Manufacturer with 20+ Years of Expertise | 24/7 Technical Support. It could be worked with well water, you may need to replace the filter more frequently (every 3 months or more often) compared to typical tap water use,it is NOT suitable for hot water filtration
    • Note:Do not overuse Teflon tape during setup. Excess tape can puncture threads and cause water leakage issues.Whole house water filter will NOT reduce lead,fluoride,nor Total Dissolved Solids (TDS),but keeps healthy minerals in your water. If you are searching for a filter that reduce TDS, Please refer Geekpure Reverse Osmosis systems,ASIN:B08X28QFB6



    Note:

    1. Please lubricate the o-ring with silicon grease and use wrench provided to prevent leakage. you may search "whole house water filter " on YouTube, there is some video about this housing, it is very helpful if it is the first time to install it.

    2. Protect filter housing from freezing.

    3. This filter housing has a maximum operating pressure rating of 90 psi, if you suspect that your water pressure will at any time exceed 60 psi, a pressure regulator MUST BE INSTALLED before the filter housing. this action will guard against the water pressure exceeding the maximum pressure rating.it is recommended that the pressure regulator be set at 60 psi or less.

    4. The rubber o-ring provides the water tight seal between the cap and the sump. it is important that the o-ring be properly SEATED IN THE GROOVE of a water leak could occur.

    More valuable information:

    1. What is dimension of the housing?

    ANSWER: It is standard sized housing for 4.5"OD x 10" height filters .

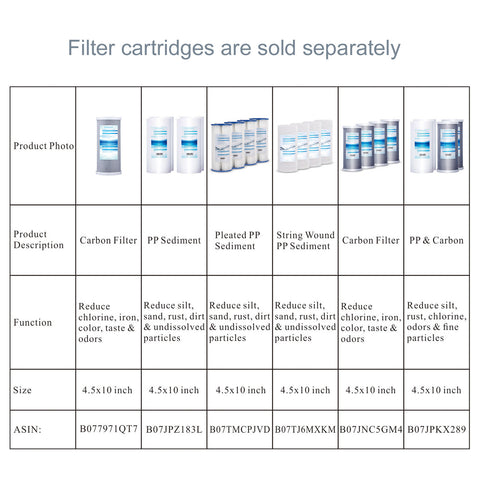

    2.What is filters options?

    ANSWER:1).PP spun filter, Remove sand, dirt, sediment. life time:6 months. ASIN:B07JPZ183L.

    2).Carbon block filter, Further remove chlorine, taste & odors, very fine particulates. life time:6 months. ASIN:B07JNC5GM4.

    3).PP string wound spun filter, Remove sand, dirt, sediment. life time:6 months.ASIN:B07TJ6MXKM.

    4).PP pleated spun filter, Remove sand, dirt, sediment. life time:6 months.ASIN:B07TMCPJVD.

    5).2 x PP and 2 x carbon filters, life time:6 months.ASIN:B07JPKX289 .

    PS.The Life Time of the Filter Cartridge Depends on Usage Amount and Feed Water Quality.


Customer Reviews

Based on 8 reviews
75%
(6)
25%
(2)
0%
(0)
0%
(0)
0%
(0)
C
Charles D
Worthy upgrade

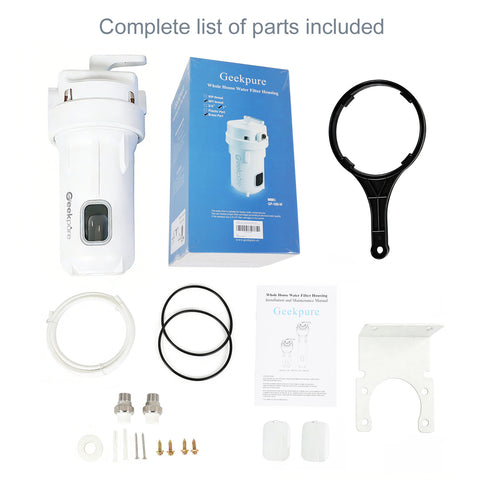

What a wonderful upgrade from Geekpure's more basic line. This filter is more robust, from the double layered filter housing to the mounting bracket. It comes with extra o-rings, removable viewing ports, fittings, plenty of Teflon tape, etc.The bypass feature is really useful when changing out the filter - a must have.

V
Val
Great features, but check your water pressure first

This is a well built filter housing with some genuinely useful features you don't typically see at this price point. The four-position valve on top is the highlight. Being able to switch between filter, bypass, backwash, and stop without replumbing anything makes maintenance so much easier. Bypass means the rest of the house still has water while you swap a cartridge. Backwash helps extend filter life. Stop is great if you're going on vacation and want peace of mind.The clear viewing windows on the bottom are a practical touch. You can actually see the condition of the filter without opening anything up, so you're not just guessing or changing cartridges on a schedule whether they need it or not.Build quality is solid. The housing is double walled and feels substantial. The 1 inch brass ports are a real upgrade over the plastic fittings you get on cheaper units, and the included mounting bracket is heavy gauge metal, not flimsy stamped stuff. Comes with a wrench, spare O-rings, and backwash tubing, so you have what you need to get started.One thing to be aware of: the working pressure range tops out at 60 psi. That's on the low side. Municipal water pressure commonly runs between 40 and 80 psi, so if your home sits at the higher end of that range you could have issues. Worth checking with a gauge before you buy. If you're above 60 psi you'd either need a pressure regulator upstream or a housing rated for higher pressure.Also worth noting that no filter cartridge is included. It takes standard 4.5 x 10 inch cartridges so you have plenty of options, but factor that into the total cost.The documentation could use improvement. The unit has all these great valve positions but the instructions don't do a great job explaining how to actually use them, especially the backwash setup. Took some figuring out on my own.Solid housing overall with features that justify the price. Just make sure your water pressure is compatible before committing.

T
Take-a-little-time
Very Well Made—Easy to Install and Use

This Geekpure 10-Inch Whole House Big Water Filter Housing for 4.5" x 10" filters is just what I needed to improve the water coming into my home. The first thing I noticed was the impressive quality of this filter housing. I thought the price was a bit steep, but once I got my eyes and hands on it, that opinion changed. This housing is far superior to the one that it replaces. The installation is no different from other similar filter housings. It has 1-inch NPT brass ports, which I had to reduce to 3/4-inch to fit my water pipe. The one standout feature is the backwash, which I needed because in our rural community, the county's water lines break frequently, and when they turn the water back on, debris can accumulate, usually requiring a filter replacement. However, now I can just backwash the filter to clear the debris. I should note that this is the pre-filter in the system. So, that's where the viewing window comes in as another handy feature. I can easily see if backwashing is needed. I can also use the lever to bypass the filter for a filter change. No more turning the water off for that task. But it also lets me cut off the water if needed.As I mentioned already, it is very well-made. The Polypropylene is much thicker than what I'm used to. The metal mounting bracket is well-made, too. The filter housing comes with mounting hardware, backwash hose, and a plastic wrench. Also, there are two window covers to keep light from allowing algae growth. With correct installation, there is no leakage.Conclusion: This filter has exceeded my expectations, which is my standard for giving five stars. It is unquestionably the best filter housing I have used. I highly recommend it.

M
Mary
solid housing with nice features but check compatibility first

This is a really solid whole house filter housing if you know what you’re getting into. The build quality feels good and the brass ports are a nice upgrade over cheaper plastic ones.One of the best features is the clear bottom. Being able to actually see the filter makes it way easier to know when it needs to be changed instead of just guessing. The different valve positions are also really useful. The bypass alone makes maintenance way less of a hassle since you don’t have to shut water off to the whole house.Flow rate has been good and it handles normal household use without any noticeable drop in pressure.The only thing to watch out for is compatibility. This isn’t universal, so you can’t just mix and match parts with other brands. If you’re replacing an existing setup, make sure everything lines up first.If it fits your system, it’s a great upgrade and has some features you don’t usually see at this price.

J
J. Naiser
eekpure 10-Inch Whole House Big Water Filter Housing-Fit for 4.5"x10"Filters -1 Inch NPT Brass P

I went after this Geekpure 10‑inch whole‑house filter housing because the page shows it as a heavy‑duty setup built for 4.5" x 10" cartridges with a 1‑inch NPT brass port. The listing highlights the clear bottom viewing window and the four working positions — Filter, Bypass, Backwash, and Stop — which is more capability than you get from a standard single‑mode housing. The surrounding page positions it as a solid option for well water or whole‑home sediment control.First impression from the listing: the clear sump is genuinely useful for checking cartridge condition, and the brass port should hold up better than plastic threads. The multi‑position valve is the standout feature here.In real use, housings like this make maintenance easier because you can flush or bypass without shutting down the whole line.Limitation: clear housings are prone to discoloring over time, especially on iron‑heavy or sediment‑rich water.
