Whole House Water Filter Housing 1" Port -4.5" x 20" -Blue Color(Pack 3)
Whole House Water Filter Housing 1" Port -4.5" x 20" -Blue Color(Pack 3)
Advantage
- COMPLETE-20 inch housing,1"NPT inlet/outlet,with pressure release button for high flow,plastic wrench and metal bracket.Housing only, filter cartridges are sold separately.Pack of 3.
- STANDARD-Fits all standard sized 4-1/2 inch diameter industry 20 inch whole house cartridges
- HIGH QUALITY-Fits NSF standard,Large capacity housing for high flow applications
- WARRANTY-One year limited warranty
- ISO9001:2008 certificated Manufacturer ,also Member of Water Quality Association (WQA)
Product description
Specification:
Maximum Pressure: 90 psi (6.2 bar)
Temperature:40-110°F/5-45°C
Shelf life: 5 Years
More valuable information:
✪What is dimension of the housing?
It is 4.5"OD x 20" height .
✪What is in the box?
3x20 inch housing with pressure release and 1inch NPT ,3pcs plastic wrench ,3 pcs metal bracket.

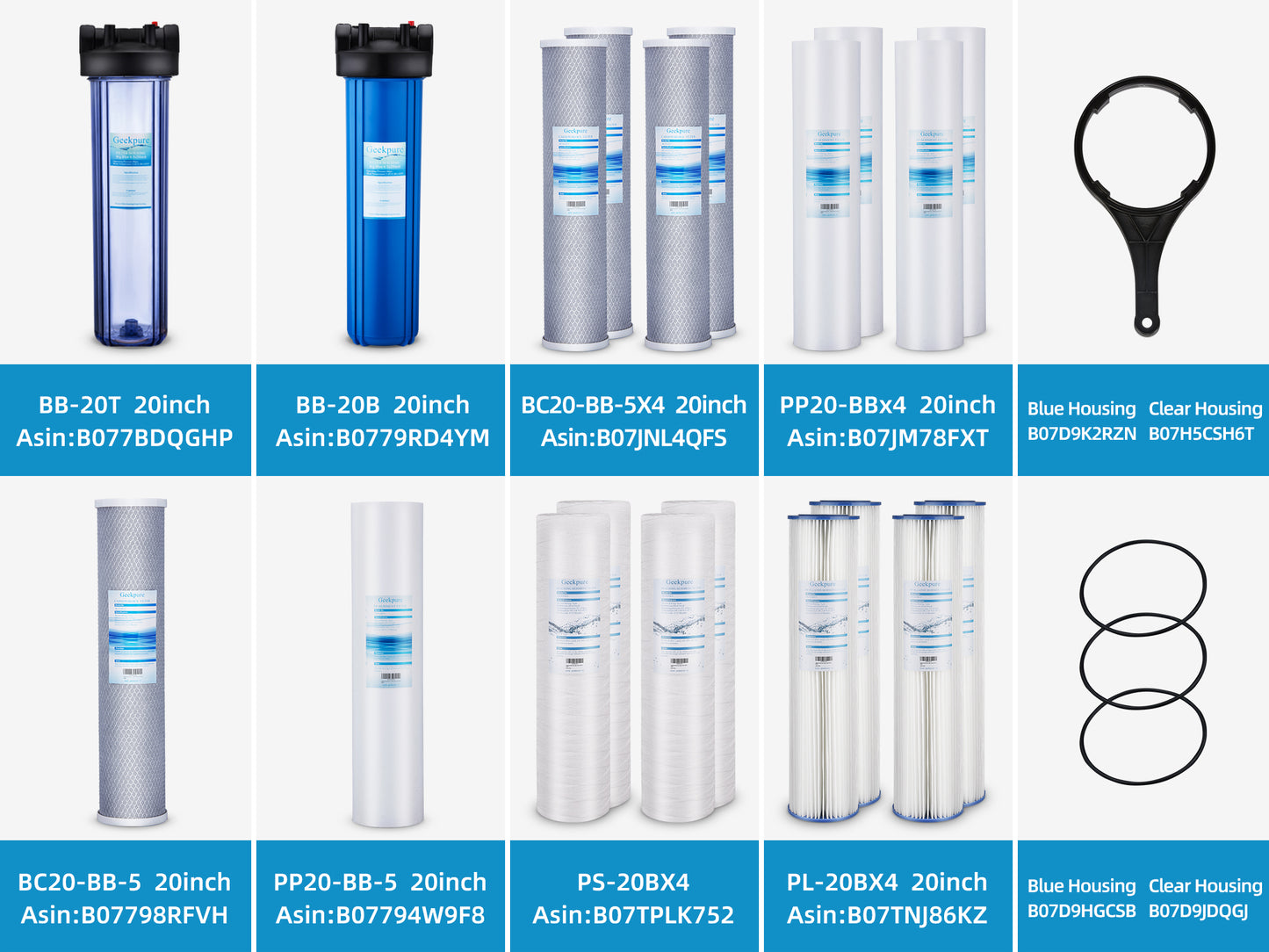

✪What is filters options?
1.PP spun filter, Remove sand, dirt, sediment. life time:6 months.ASIN:B07794W9F8.
2.Granular activited carbon filter, Remove chlorine, taste & odors, very fine particulates. life time:6months. ASIN:B0779YX41N.
3.Carbon block filter, Further remove chlorine, taste & odors, very fine particulates. life time:6 months. ASIN:B07798RFVH.
4.PP pleated filter, the material is same as PP sediment,Remove sand, dirt, sediment. life time:6 months.
PS.The Life Time of the Filter Cartridge Depends on Usage Amount and Feed Water Quality.
Note:
Please lubricate the o-ring with silicon grease and use wrench provided to prevent leakage.
2. Protect filter housing from freezing.
3. This filter housing has a maximum operating pressure rating of 90 psi, if you suspect that your water pressure will at any time exceed 80 psi, a pressure regulator MUST BE INSTALLED before the filter housing. this action will guard against the water pressure exceeding the maximum pressure rating.it is recommended that the pressure regulator be set at 70 psi or less.
4.The rubber o-ring provides the water tight seal between the cap and the sump. it is important that the o-ring be properly SEATED IN THE GROOVE of a water leak could occur.
